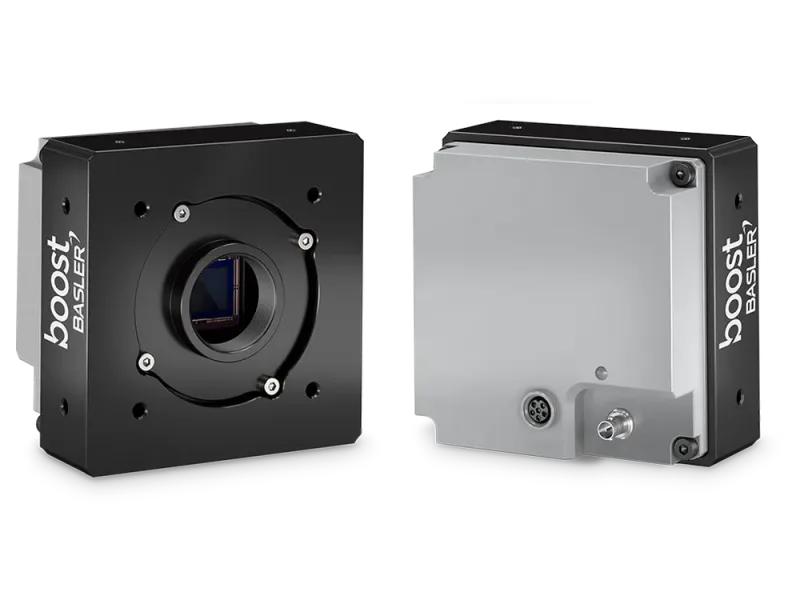

boA4096-93cm: 107803 - Basler CMOS Sensor Vision System
Technical Specifications of Basler CMOS Sensor Vision System boA4096-93cm 107803:
| Resolution | 9 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 93 fps |
| Power Supply | PoCXP or 24 VDC |
Basler CMOS Sensor Vision System boA4096-93cm, 107803 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | boost R |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX255 |
| Shutter | Global Shutter |
| Sensor Format | 1.2" |
| Sensor Diagonal | 15.97 mm |
| Sensor Type | CMOS |
| Sensor Size | 14.1 mm × 7.5 mm |
| Resolution (H x V) | 4096 px × 2168 px |
| Resolution | 9 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 93 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Interface | CoaXPress (CXP-12) |
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoCXP or 24 VDC |
| Housing Size (L x W x H) | 45 mm x 80 mm x 80 mm |
| Weight | 480 g |
| Attribute Name | Attribute Value |
| Type | Lens Accessory |
| Cable Length | 5 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 12.5 Gbps; 50 Gbps |
| Synchronization | free-run, hardware trigger, software trigger |
| Power Requirements (typical) | 8 W |
| Housing Type | Box |
| Operating Temperature | 0 °C - 50 °C |
| Mount | C-mount |
| Focal Length | 25 mm |
| Working Distance | 150 mm |
| Exposure Control | hardware trigger, programmable via the camera API |
| Lens Mount | C-mount, F-mount, M42 x 0.75, M42 x 1 |
Get A Quote for Basler CMOS Sensor Vision System boA4096-93cm part no: 107803 at the best price. Here are the brief Technical Specifications of boA4096-93cm, 107803 are boost R Product Family 9 MP resolution with a pixel size of 3.45 μm × 3.45 μm. This camera supports a frame rate of 93 fps and utilizes the CoaXPress (CXP-12) interface for high-speed data transmission. Powered by PoCXP or 24 VDC it ensures reliable operation. The compact housing measures 45 mm x 80 mm x 80 mm making it suitable for various applications. It comes with a standard 5 m and Lens Accessory and operates at a peak wavelength of 625 nm. The product line includes 4. It's Time to get a Quote for your requirement of Basler CMOS Sensor Vision System. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
