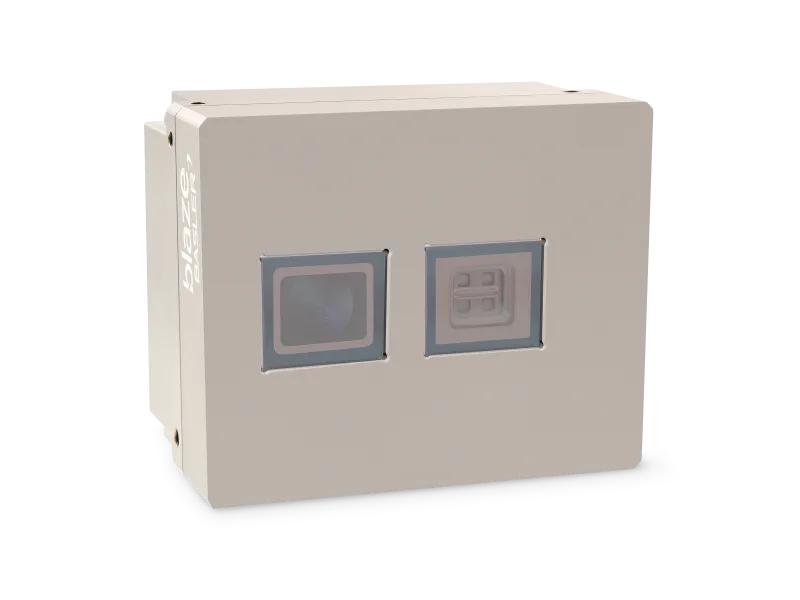

blaze-102: 108711 - Basler 3D Images in Real Time
Technical Specifications of Basler 3D Images in Real Time blaze-102 108711:
| Measuring Method | Time-of-Flight Camera |
| Wavelength | 850 nm |
| Working Range | 0.3 m - 10 m |
| Power Supply | 24 VDC ±10%; <11.5 W mean; <38 W peak |
Basler 3D Images in Real Time blaze-102, 108711 Technical Specifications:
| Specification | Value |
|---|---|
| Camera Category | 3D Camera |
| Measuring Method | Time-of-Flight Camera |
| Sensor Vendor | Sony |
| Sensor | DepthSense™ IMX556 |
| Resolution (H x V) | 640 px × 480 px |
| Resolution | VGA |
| Wavelength | 850 nm |
| Streaming Format | point cloud (XYZ); range map; intensity image; confidence map |
| Interface | I/O |
| Field of View | 67° x 51° |
| Working Range | 0.3 m - 10 m |
| Accuracy | ±5 mm (0.5 – 5.5 m); typical |
| Temporal Noise | < 0.8 mm (up to 5.5 m); typical |
| Frame rate | 30 fps |
| Latency | < 85 ms |
| Illumination | 4 x VCSEL laser diodes; 850 nm; class 1 |
| Sunlight Robustness | Max. irradiance 6.8 W/m² @ 830–880 nm |
| Data Connector | IEC 61076-2-109; M12; 8-pin; x-coded; female |
| Power Connector | IEC 61076-2-101; M12; 8-pin; female |
| Power Supply | 24 VDC ±10%; <11.5 W mean; <38 W peak |
| Mono/Color | Mono |
| Lens Mount | lens integrated |
| Synchronization | free-run, hardware trigger, PTP IEEE1588, software trigger |
| Exposure Control | programmable via the camera API |
| Components | API, Driver, Samples, User Manual, Viewer |
| Standards | GenApi, GenICam, GenTL, GigE Vision |
| Operating System | ARM Linux (AArch64), Linux (x86_64), Windows |
| Programming Language | .Net, C/C++, Python |
| Third-Party Support | Halcon, Isaac, MIL, OpenCV, Point Cloud Library (PCL), ROS |
| Protection Class | IP67 |
| Housing Size (L x W x H) | 100 mm x 81 mm x 64 mm |
| Weight | 690 g |
| Housing Type | Box |
| Mounting Points | 1/4-20 UNC thread (tripod); multiple M4 threads |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Type | Adapter Cable |
| Cable Length | 2 m |
Call us for Basler 3D Images in Real Time blaze-102 part no: 108711 at the best rates. Technical Attributes of blaze-102, 108711 are VGA Resolution designed for precise imaging with an 850 nm wavelength. This sensor features versatile I/O interfaces and operates within a working range of 0.3 m - 10 m making it suitable for various industrial applications. Powered by 24 VDC ±10%; <11.5 W mean; <38 W peak the sensor ensures reliable performance. It comes with an lens integrated compatible with ARM Linux (AArch64), Linux (x86_64), Windows operating systems. The robust housing measures 100 mm x 81 mm x 64 mm and is built to last, housed in a durable Box-type enclosure. For flexible installation, the sensor offers multiple mounting points, including a 1/4-20 UNC thread (tripod); multiple M4 threads. Operating efficiently within a temperature range of 0 °C - 50 °C it comes with a 2 m cable. Unlock Exclusive Pricing with a Quote for your requirement of Basler 3D Images in Real Time. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
