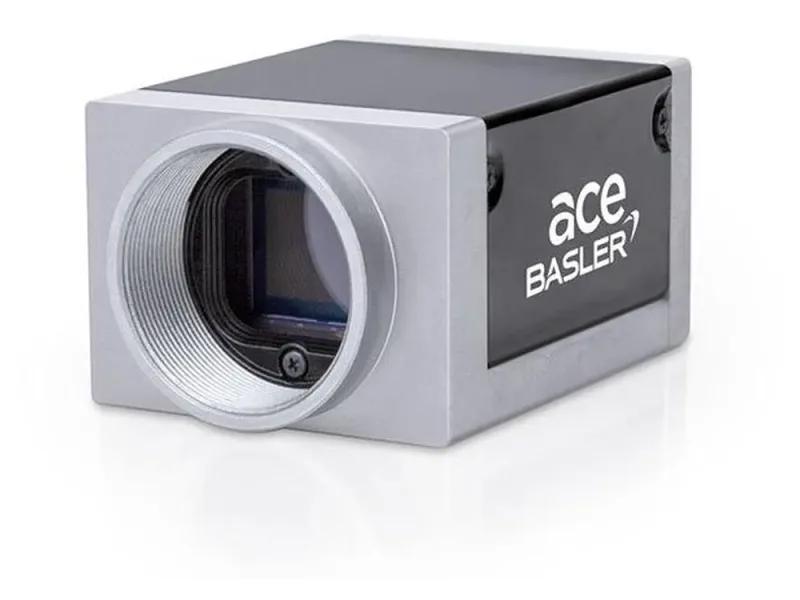

acA4112 (IMX304): 107411 - Basler Area Scan Camera with Sony Sensor
Technical Specifications of Basler Area Scan Camera with Sony Sensor acA4112 (IMX304) 107411:
| Sensor | IMX304 |
| Sensor size | 14.13 mm × 10.35 mm |
| Mount | C-mount |
| Cable Length | 10 m |
Basler Area Scan Camera with Sony Sensor acA4112 (IMX304), 107411 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace L |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX304 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 17.52 mm |
| Sensor Type | CMOS |
| Sensor Size | 14.13 mm × 10.35 mm |
| Resolution (H x V) | 4096 px × 3000 px |
| Resolution | 12 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 8 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 69 % (typical) |
| Dark Noise (typical/maximal) | 2.3 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 10.2 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 72.8 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 40.1 dB (typical) |
| Interface | 10GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 10 bits, 12 bits |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements (typical) | 2.7 W |
| Power Consumption PoE | 3.3 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 50 mm x 40 mm x 30 mm |
| Weight | 150 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 16 mm |
| Working Distance | 100 mm |
| Type | Lens Accessory |
| Cable Length | 10 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| No. of Ports | 1 |
| Data Bandwidth (p.port; Total) | 10 Gbps; 10 Gbps |
Mail Us for your needs in Basler Area Scan Camera with Sony Sensor acA4112 (IMX304) part no: 107411 with budget-friendly prices. The Main Technical Parameters of acA4112 (IMX304), 107411 inludce Product Family offers the ace L and Standard series, featuring a 12 MP resolution at 8 fps. The camera utilizes a 10GigE interface and supports Power over Ethernet PoE or 12-24 VDC power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 16 mm with a working distance of 100 mm and a cable length of 10 m. The camera operates at a peak wavelength of 625 nm. Customize Your Experience with a Quote for your requirement of Basler Area Scan Camera with Onsemi Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
