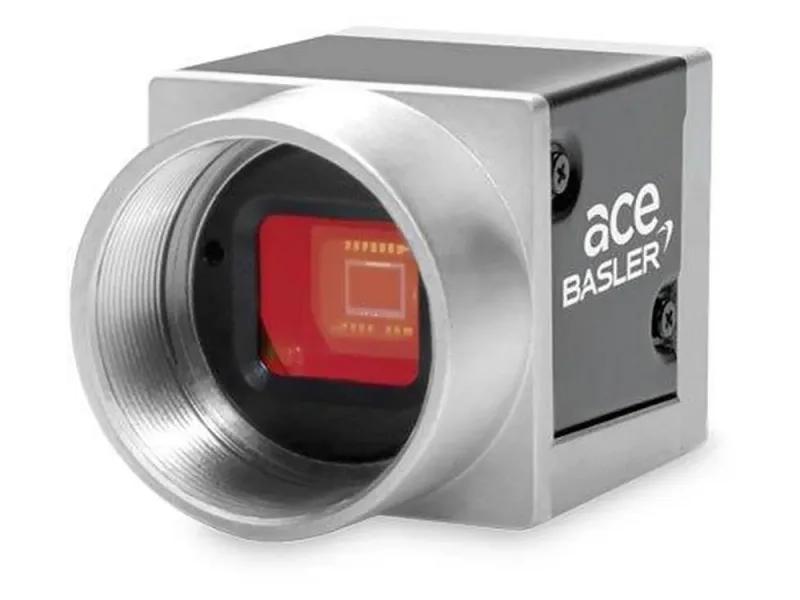

acA2500-14uc: 106944 - Basler Area Scan Camera with 14 fps Frame Rate
Technical Specifications of Basler Area Scan Camera with 14 fps Frame Rate acA2500-14uc 106944:
| Sensor | MT9P031 |
| Sensor size | 5.7 mm × 4.28 mm |
| Mount | C-mount |
| Cable Length | 10 m |
Basler Area Scan Camera with 14 fps Frame Rate acA2500-14uc, 106944 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace Classic |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | onsemi |
| Sensor | MT9P031 |
| Shutter | Rolling Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 7.13 mm |
| Sensor Type | CMOS |
| Sensor Size | 5.7 mm × 4.28 mm |
| Resolution (H x V) | 2590 px × 1942 px |
| Resolution | 5 MP |
| Pixel Size (H x V) | 2.2 μm × 2.2 μm |
| Frame rate | 14 fps |
| Mono/Color | Color |
| Spectrum | Visible |
| Dark Noise (typical/maximal) | 6.7 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 6.8 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 60 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 38.3 dB (typical) |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 12 bits |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| Power Supply | Via USB 3.0 interface |
| Power Requirements (typical) | 2.2 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 29.3 mm x 29 mm x 29 mm |
| Weight | 80 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 12 mm |
| Working Distance | 100 mm |
| Type | Lens Accessory |
| Cable Length | 10 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 5 Gbps (625 MB/s); 5 Gbps (625 MB/s) |
| Synchronization | free-run, hardware trigger, software trigger |
| Digital Output | 1 |
| General Purpose I/O | 2 |
| Quantum Efficiency - blue (typical/minimal) | 7.21 % (typical) |
| Quantum Efficiency - green (typical/minimal) | 41.09 % (typical) |
| Quantum Efficiency - red (typical/minimal) | 6.72 % (typical) |
Ask for the Pricing of Basler Area Scan Camera with 14 fps Frame Rate acA2500-14uc part no: 106944 at unbeatable prices. Detailed Specifications of acA2500-14uc, 106944 feature Product Family offers the ace Classic and Standard series, featuring a 5 MP resolution at 14 fps. The camera utilizes a USB 3.0 interface and supports Power over Ethernet Via USB 3.0 interface power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 12 mm with a working distance of 100 mm and a cable length of 10 m. The camera operates at a peak wavelength of 625 nm. Now's the Time to Secure a Quote for your requirement of Basler Area Scan Camera with 14 fps Frame Rate. We're committed to offering more favorable pricing and more responsive support than other Traders.
