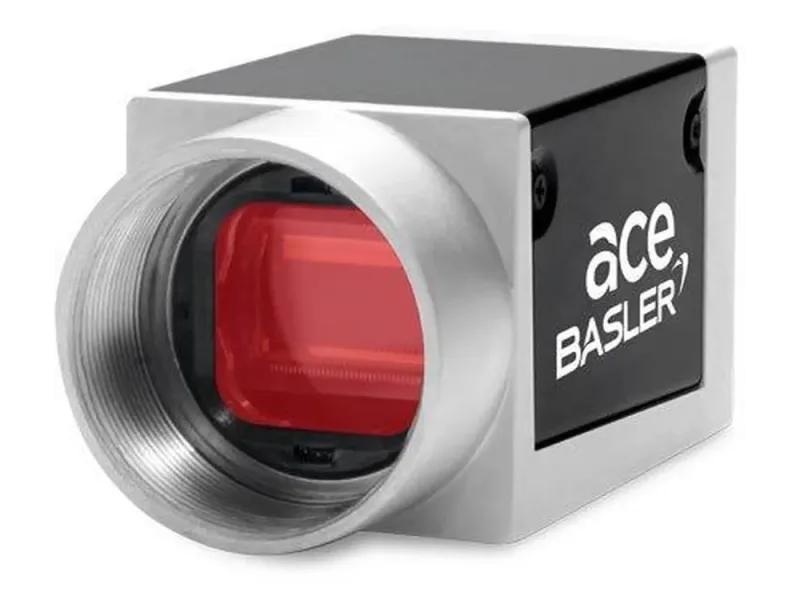

acA1600-60gm: 106792 - Basler Area Scan Camera with 1 Digital Output
Technical Specifications of Basler Area Scan Camera with 1 Digital Output acA1600-60gm 106792:
| Sensor | EV76C570 |
| Sensor size | 7.2 mm × 5.4 mm |
| Mount | C-mount |
| Cable Length | 5 m |
Basler Area Scan Camera with 1 Digital Output acA1600-60gm, 106792 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace Classic |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | e2v |
| Sensor | EV76C570 |
| Shutter | Global & Rolling Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 9 mm |
| Sensor Type | CMOS |
| Sensor Size | 7.2 mm × 5.4 mm |
| Resolution (H x V) | 1602 px × 1202 px |
| Resolution | 2 MP |
| Pixel Size (H x V) | 4.5 μm × 4.5 μm |
| Frame rate | 60 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 47 % (typical) |
| Dark Noise (typical/maximal) | 22 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 6.8 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 49.8 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 38.3 dB (typical) |
| Interface | 10GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 12 bits |
| Exposure Control | programmable via the camera API |
| Digital Input | 1 |
| Power Supply | PoE or 12 VDC |
| Power Requirements (typical) | 2.1 W |
| Power Consumption PoE | 2.7 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 42 mm x 29 mm x 29 mm |
| Weight | 90 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 35 mm |
| Working Distance | 200 mm |
| Type | I/O / Power Cable |
| Cable Length | 5 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| No. of Ports | 1 |
| Data Bandwidth (p.port; Total) | 10 Gbps; 10 Gbps |
| Synchronization | Ethernet connection, free-run, hardware trigger |
| Digital Output | 1 |
Obtain a Quote for Basler Area Scan Camera with 1 Digital Output acA1600-60gm part no: 106792 at economical prices. Specifications Overview for acA1600-60gm, 106792 reveals Product Family offers the ace Classic and Standard series, featuring a 2 MP resolution at 60 fps. The camera utilizes a 10GigE interface and supports Power over Ethernet PoE or 12 VDC power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 35 mm with a working distance of 200 mm and a cable length of 5 m. The camera operates at a peak wavelength of 625 nm. Take the First Step with a Quote for your requirement of Basler Area Scan Camera with 1 Digital Output. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
