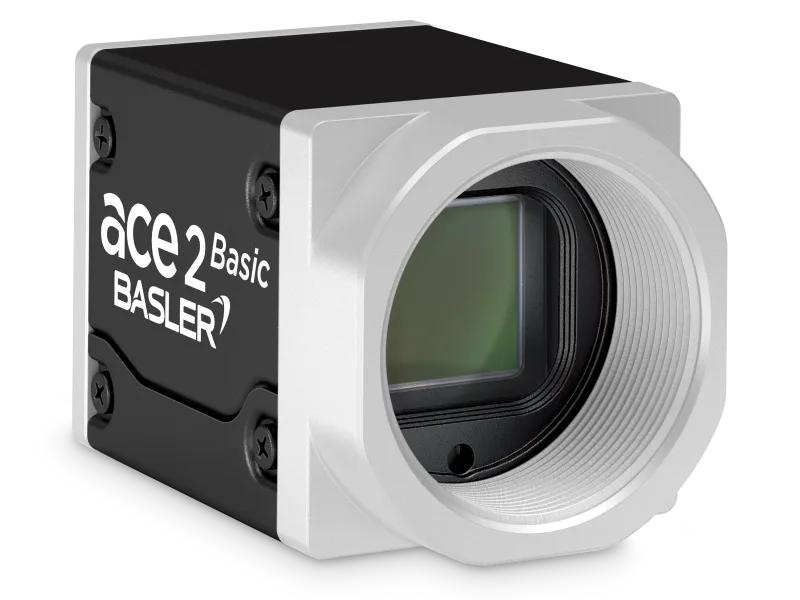

a2A4508 (GMAX2518): 108456 - Basler Vision System with Gpixel Sensor
Technical Specifications of Basler Vision System with Gpixel Sensor a2A4508 (GMAX2518) 108456:
| Product Family | ace 2 R |
| Frame rate | 20 fps |
| Interface | USB 3.0 |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
Basler Vision System with Gpixel Sensor a2A4508 (GMAX2518), 108456 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace 2 R |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Gpixel |
| Sensor | GMAX2518 |
| Shutter | Global Shutter |
| Sensor Format | 1.1" |
| Sensor Diagonal | 15.2 mm |
| Sensor Type | CMOS |
| Sensor Size | 11.27 mm × 10.24 mm |
| Resolution (H x V) | 4508 px × 4096 px |
| Resolution | 18.4 MP |
| Pixel Size (H x V) | 2.5 μm × 2.5 μm |
| Frame rate | 20 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 56.3 % (typical) |
| Dark Noise (typical/maximal) | 3.2 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 5.7 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 63.8 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 37.6 dB (typical) |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| Power Supply | Via USB 3.0 interface |
| Power Requirements (typical) | 3.4 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 42.8 mm x 29 mm x 29 mm |
| Weight | 85 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 60 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 16 mm |
| Working Distance | 100 mm |
| Type | Lens Accessory |
| Cable Length | 3 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 5 Gbps (625 MB/s); 5 Gbps (625 MB/s) |
Ask for the Pricing of Basler Vision System with Gpixel Sensor a2A4508 (GMAX2518) part no: 108456 at unbeatable prices. Detailed Specifications of a2A4508 (GMAX2518), 108456 feature ace 2 R Sensor Product Family offers a cutting-edge 18.4 MP resolution at an impressive 20 fps utilizing the USB 3.0 interface. It supports 8 bits, 10 bits, 12 bits pixel depth, ensuring high-quality imaging. Power is supplied via Via USB 3.0 interface, making it efficient and easy to integrate. The robust Box-type housing is designed to withstand industrial conditions, with an C-mount lens interface for versatile application. Operating temperatures range from -10 °C - 60 °C making it reliable in various environments. The system is equipped with a 16 mm focal length lens, a working distance of 100 mm and a cable length of 3 m providing flexibility for different setups. The sensor operates at a peak wavelength of 625 nm. Now's the Time to Secure a Quote for your requirement of Basler Vision System with Gpixel Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
