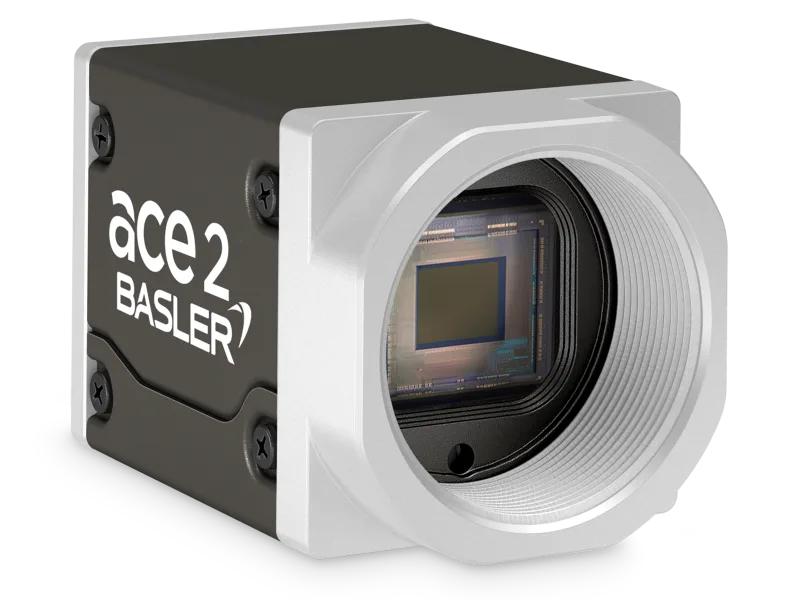

During technical comparisons, A2A2840-V-IMX546 appears alongside Basler Aca5472 Imx183, Basler Balser Racer Sensors and Basler A2A1280 125Umswir so engineers assess signal types, ingress protection, and ambient tolerances accurately.
a2A2840 V (IMX546): 109260 - Basler ace 2 V Vision System
Technical Specifications of Basler ace 2 V Vision System a2A2840 V (IMX546) 109260:
| Product Family | ace 2 V |
| Frame rate | 86 fps |
| Interface | CoaXPress (CXP-12) |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
Basler ace 2 V Vision System a2A2840 V (IMX546), 109260 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace 2 V |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX546 |
| Shutter | Global Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 11 mm |
| Sensor Type | CMOS |
| Sensor Size | 7.78 mm × 7.78 mm |
| Resolution (H x V) | 2840 px × 2840 px |
| Resolution | 8.1 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 86 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 65.4 % (typical) |
| Dark Noise (typical/maximal) | 2.5 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 9.9 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 70.1 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 39.9 dB (typical) |
| Interface | CoaXPress (CXP-12) |
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
| Synchronization | free-run, hardware trigger, software trigger |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoCXP |
| Power Requirements (typical) | 3.2 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 29 mm x 29 mm |
| Weight | 76 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 25 mm |
| Working Distance | 200 mm |
| Type | Lens Accessory |
| Cable Length | 5 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 12.5 Gbps; 50 Gbps |
Ask for the Pricing of Basler ace 2 V Vision System a2A2840 V (IMX546) part no: 109260 at unbeatable prices. Detailed Specifications of a2A2840 V (IMX546), 109260 feature ace 2 V Sensor Product Family offers a cutting-edge 8.1 MP resolution at an impressive 86 fps utilizing the CoaXPress (CXP-12) interface. It supports 8 bits, 10 bits, 12 bits pixel depth, ensuring high-quality imaging. Power is supplied via PoCXP, making it efficient and easy to integrate. The robust Box-type housing is designed to withstand industrial conditions, with an C-mount lens interface for versatile application. Operating temperatures range from 0 °C - 50 °C making it reliable in various environments. The system is equipped with a 25 mm focal length lens, a working distance of 200 mm and a cable length of 5 m providing flexibility for different setups. The sensor operates at a peak wavelength of 625 nm. Now's the Time to Secure a Quote for your requirement of Basler ace 2 V Vision System. We're committed to offering more favorable pricing and more responsive support than other Traders.
