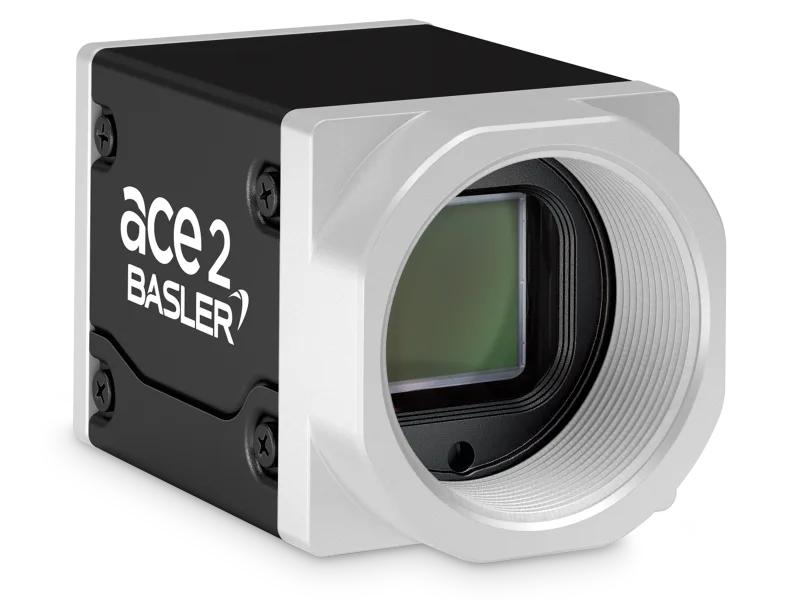

a2A2560-20gmSWIR: 109371 - Basler 11.4 mm Sensor Diagonal Vision System
Technical Specifications of Basler 11.4 mm Sensor Diagonal Vision System a2A2560-20gmSWIR 109371:
| Product Family | ace 2 X |
| Frame rate | 20 fps |
| Interface | 10GigE |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
Basler 11.4 mm Sensor Diagonal Vision System a2A2560-20gmSWIR, 109371 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace 2 X |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX992 |
| Shutter | Global Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 11.4 mm |
| Sensor Type | InGaAs |
| Sensor Size | 8.8 mm × 7.1 mm |
| Resolution (H x V) | 2560 px × 2048 px |
| Resolution | 5.2 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 20 fps |
| Mono/Color | Mono |
| Spectrum | Visible + SWIR |
| Interface | 10GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
| Synchronization | free-run, hardware trigger, software trigger |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements (typical) | 3.4 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
| Weight | 100 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 60 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 35 mm |
| Working Distance | 300 mm |
| Type | Data Cable |
| Cable Length | 5 m |
| LED Color | Shortwave Infrared (SWIR) |
| Peak Wavelength (typical) | 1200 nm |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 1 |
| Data Bandwidth (p.port; Total) | 10 Gbps; 10 Gbps |
| Design-In Sample | 07/2024 |
| Power Consumption PoE | 4.4 W |
Mail Us for your needs in Basler 11.4 mm Sensor Diagonal Vision System a2A2560-20gmSWIR part no: 109371 with budget-friendly prices. The Main Technical Parameters of a2A2560-20gmSWIR, 109371 inludce ace 2 X Sensor Product Family offers a cutting-edge 5.2 MP resolution at an impressive 20 fps utilizing the 10GigE interface. It supports 8 bits, 10 bits, 12 bits pixel depth, ensuring high-quality imaging. Power is supplied via PoE or 12-24 VDC, making it efficient and easy to integrate. The robust Box-type housing is designed to withstand industrial conditions, with an C-mount lens interface for versatile application. Operating temperatures range from -10 °C - 60 °C making it reliable in various environments. The system is equipped with a 35 mm focal length lens, a working distance of 300 mm and a cable length of 5 m providing flexibility for different setups. The sensor operates at a peak wavelength of 1200 nm. Customize Your Experience with a Quote for your requirement of Basler 11.4 mm Sensor Diagonal Vision System. Experience the difference with our competitive pricing and superior support over other Suppliers.
