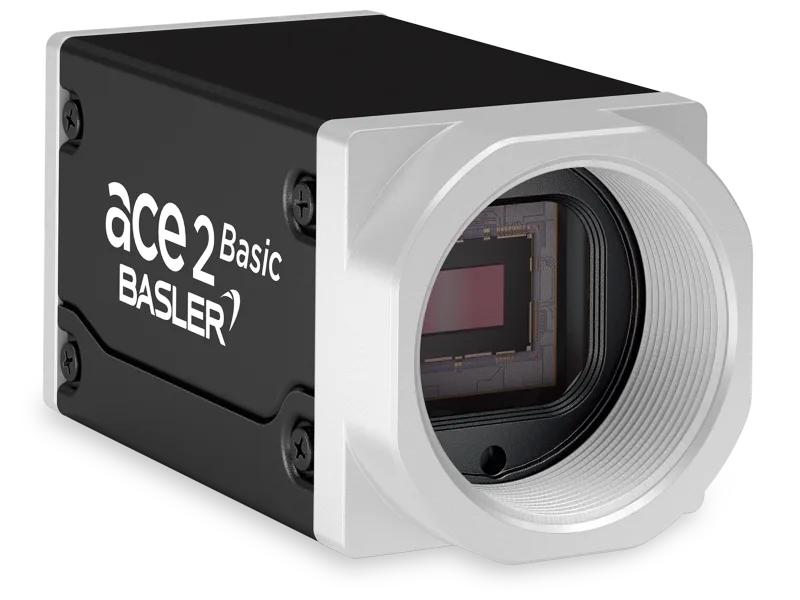

a2A2440 (IMX250): 109234 - Basler 11.02 mm Sensor Diagonal Vision System
Technical Specifications of Basler 11.02 mm Sensor Diagonal Vision System a2A2440 (IMX250) 109234:
| Product Family | ace 2 R |
| Frame rate | 98 fps |
| Interface | 5GigE |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
Basler 11.02 mm Sensor Diagonal Vision System a2A2440 (IMX250), 109234 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace 2 R |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Sony |
| Sensor | IMX250 |
| Shutter | Global Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 11.02 mm |
| Sensor Type | CMOS |
| Sensor Size | 8.45 mm × 7.07 mm |
| Resolution (H x V) | 2448 px × 2048 px |
| Resolution | 5 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 98 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 62.1 % (typical) |
| Dark Noise (typical/maximal) | 2.1 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 10.5 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 71.6 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 40.2 dB (typical) |
| Interface | 5GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s), 2.5 Gigabit Ethernet (2500 Mbit/s), 5 Gigabit Ethernet (5000 Mbit/s) |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bits |
| Synchronization | free-run, hardware trigger, software trigger |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | 12-24 VDC |
| Power Requirements (typical) | 5.5 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
| Weight | 102 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 35 mm |
| Working Distance | 200 mm |
| Type | Lens Accessory |
| Cable Length | 5 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 5 Gbps; 20 Gbps |
| Design-In Sample | now |
| Housing Alternatives | none |
Talk to Our Engineer for Basler 11.02 mm Sensor Diagonal Vision System a2A2440 (IMX250) part no: 109234 with exclusive offers. Core System Specifications of a2A2440 (IMX250), 109234 are ace 2 R Sensor Product Family offers a cutting-edge 5 MP resolution at an impressive 98 fps utilizing the 5GigE interface. It supports 8 bits, 10 bits, 12 bits pixel depth, ensuring high-quality imaging. Power is supplied via 12-24 VDC, making it efficient and easy to integrate. The robust Box-type housing is designed to withstand industrial conditions, with an C-mount lens interface for versatile application. Operating temperatures range from -10 °C - 50 °C making it reliable in various environments. The system is equipped with a 35 mm focal length lens, a working distance of 200 mm and a cable length of 5 m providing flexibility for different setups. The sensor operates at a peak wavelength of 625 nm. Don't Miss Out on a Quote for your requirement of Basler 11.02 mm Sensor Diagonal Vision System. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
