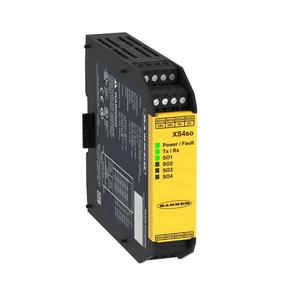

Banner XS4SO Safety Relay
The Banner XS4SO Safety Relay offers 3, rating, Screw terminal type. Manufactured by Banner under the Banner Safety Relay category, this model belongs to the ATK Series.
| Supply Voltage | 24 V dc +/- 20% |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Power Consumption | 4.1 A (external load maximum) |
Banner XS4SO Safety Relay β Technical Specifications
| Specification | Value |
|---|---|
| Type | XS26 Series Expandable Safety Controllers |
| IP Rating | IP20 |
| Power | DC |
| Supply Voltage | 24 V dc +/- 20% |
| Device Type | Safety Controller |
| PL Rating | e |
| SIL Rating | 3 |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| LCD Display | No |
| In-Series Diagnostics | No |
| Max Operating Temperature ( Β°C) | 55 |
| Relative Humidity | 90% @ 50Β° C |
| SISTEMA | PFHd = 5.8 x 10-10 |
| Safety Module Type | Output Module |
| Expandable | Yes |
| Dimension (H x W x D in mm) | 110 x 22.5 x 129 |
| Independently Controlled Safe Outputs | 8 |
| Output Configuration | 4 OSSD Pairs |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Splittable Safe Output | Yes |
| Power Consumption | 4.1 A (external load maximum) |
| Response Time (ms) | See Software Configuration Summary |
| Terminal Type | Screw |
| Removable Terminals | Yes |
| Safety Category Rating | 4 |
| Gate Switch (NC/NC) Input | No |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| Light Curtains/Scanner with EDM Input | No |
| Light Curtains/Scanner without EDM Input | No |
| Non Safe Output Configuration | Up to 8 PNP |
