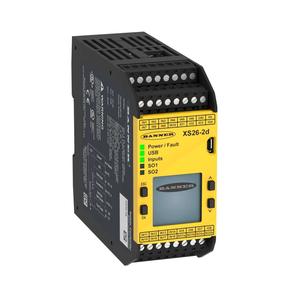

Banner XS26-2D Safety Relay
The Banner XS26-2D Safety Relay offers 3, rating, Screw terminal type. Manufactured by Banner under the Banner Safety Relay category, this model belongs to the ATK Series.
| Supply Voltage | 24 V dc +/- 20% |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Power Consumption | 0.12 A (controller only); 3.6 A (bus load) |
Banner XS26-2D Safety Relay β Technical Specifications
| Specification | Value |
|---|---|
| Type | XS26 Series Expandable Safety Controllers |
| IP Rating | IP20 |
| Power | DC |
| Supply Voltage | 24 V dc +/- 20% |
| Device Type | Safety Controller |
| PL Rating | e |
| Recovery Time | 250 (typical), 400 (max) |
| SIL Rating | 3 |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| LCD Display | Yes |
| In-Series Diagnostics | No |
| Max Operating Temperature ( Β°C) | 55 |
| Relative Humidity | 90% @ 50Β° C |
| SISTEMA | PFHd = 1.05 x 10-9 |
| Safety Module Type | Base Controller |
| Expandable | Yes |
| Dimension (H x W x D in mm) | 110 x 45 x 129 |
| Input Operation | Simultaneous or Concurrent |
| Number of Safe Inputs | 26 |
| Input Configuration | Configurable |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 15 - 30 V dc |
| Independently Controlled Safe Outputs | 4 |
| Output Configuration | 2 OSSD Pairs |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Splittable Safe Output | Yes |
| Power Consumption | 0.12 A (controller only); 3.6 A (bus load) |
| Response Time (ms) | See Software Configuration Summary |
| Terminal Type | Screw |
| Removable Terminals | Yes |
| Safety Category Rating | 4 |
| E-Stops/Rope Pulls | Yes |
| Safety Mat | Yes |
| Motor Speed | No |
| Muting | Yes |
| Gate Switch (NC/NC) Input | Yes |
| Gate Switch (NC/NO) Input | Yes |
| Gate Switch (OSSD) Input | Yes |
| Light Curtains/Scanner with EDM Input | Yes |
| Light Curtains/Scanner without EDM Input | Yes |
| Non Safe Output Configuration | Up to 11 PNP |
| Number of Convertible Inputs | 8 |
| Safety Input - Dual Channel (Dry Contact) | 5-50 mA @ 24 V dc |
| Safety Input - Reset | 5-50 mA @ 24 V dc |
| THC Rating | IIIC |
| Safety Input - Single Channel | 5-50 mA @ 24 V dc |
| Input Resistance | 150 Ξ© max. per lead |
| Two-Hand Controls | Yes |
