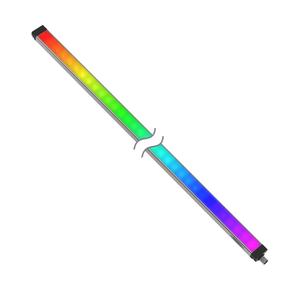

Banner WLS28PXRGBW570DXQ Lighting and Indication
The Banner WLS28PXRGBW570DXQ Lighting and Indication offers a Linear Strip style, No Thread mounting, 18-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLS28PXRGBW570DXQ |
Banner WLS28PXRGBW570DXQ Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP50 |
| Power | DC |
| Primary Housing Material | Aluminum |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 19 |
| Product Size (mm) | 28 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGBW |
| Animation Option 1 | See Configuration File |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 1100 |
| Wire Selectable Function | Programmable |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Max Input Response Time (ms) | 300 |
| Physical Dimensions (LxWxH or DxH mm) | 608.0 x 28.0 x 20.9 |
| Environmental Rating | IP50 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Storage Temp (°C) | -40 to 70 |
| I/O Block Compatible | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Illumination | Yes |
| Dimming Option | Programmable |
| Illuminated Length (LxWxH mm) | 570 |
| Pro-Editor Compatible (Discrete) | Yes |
| PFM Input | Yes |
