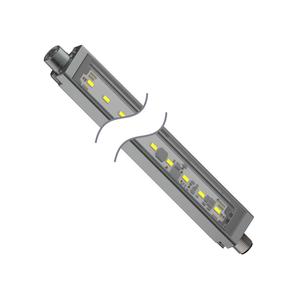

Banner WLS28-2CWW285DSQ Lighting and Indication
The Banner WLS28-2CWW285DSQ Lighting and Indication offers a Linear Strip style, No Thread mounting, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLS28-2CWW285DSQ |
Banner WLS28-2CWW285DSQ Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP65, IP67, IP69K |
| Power | DC |
| Primary Housing Material | Aluminum |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 28 |
| Color Technology | Standard LED |
| Color Option 1 | Warm White |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 334.0 x 28.0 x 20.9 |
| Environmental Rating | IP65; IP67; IP69K |
| High Temperature (up to 100Β° C) | 70 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Storage Temp (Β°C) | -40 to 70 |
| Feature: Cascade | Yes |
| Lumens Color 1 | 600 |
| Color 1 - Wavelength/Color Temp/Coordinates | 3000K (Warm) |
| Illumination | Yes |
| Dimming Option | High-Low-Off |
| Illuminated Length (LxWxH mm) | 285 |
