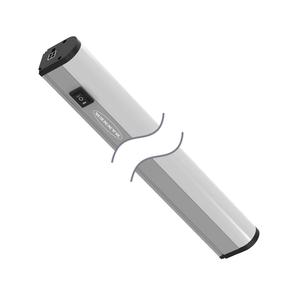

Banner WLS28-2CWR-570SQ Lighting and Indication

Name: Bannerengineering WLS28-2CWR-570SQ
Brand: IndMALL
SKU: 3977e68e7963
Rating: 4.4 (4 reviews)

The Banner WLS28-2CWR-570SQ Lighting and Indication offers a Linear Strip style, No Thread mounting, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.

Datasheet

Brand	Banner
Product Type	Lighting and Indication
Model Number	WLS28-2CWR-570SQ

Banner WLS28-2CWR-570SQ Lighting and Indication – Technical Specifications

Specification	Value
Housing Style	Linear Strip
IP Rating	IP65, IP67, IP69K
Power	DC
Primary Housing Material	Aluminum
Connection	Integral QD
Feature: Audible	No
Display	No
Mounting Thread	No Thread
Color Input Control	Individual (One wire/color, same number of colors as input wires)
Number of Colors	2
Product Size (mm)	28
Color Technology	Standard LED
Color Option 1	Daylight White
Animation Option 1	Solid On
Quick Disconnect Type	M12
Color Option 2	Red
Animation Option 2	Solid On
Number of Input Pins/Conductors	4
Supply Voltage	12-30 V dc
Physical Dimensions (LxWxH or DxH mm)	616.0 x 28.0 x 20.9
Environmental Rating	IP65; IP67; IP69K
High Temperature (up to 100° C)	70
Min Op. Temperature (°C)	-40
Primary Window Material	Polycarbonate Clear
Feature: Quick Disconnect	Yes
Feature: Washdown Rated	Yes
Storage Temp (°C)	-40 to 70
Feature: Cascade	Yes
Lumens Color 1	950
Color 1 - Wavelength/Color Temp/Coordinates	5000K (Daylight)
Lumens Color 2	400
Color 2 - Wavelength/Color Temp/Coordinates	625 nm
Illumination	Yes
Illuminated Length (LxWxH mm)	570
