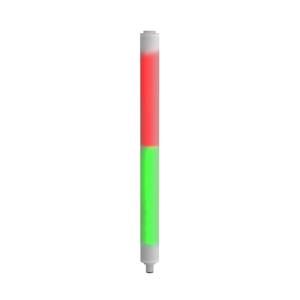

Bannerengineering WLS27XGRX2S-0285DS24Q LED Indicators
Technical Specifications of Banner LED Indicators WLS27XGRX2S-0285DS24Q:
| Housing Style | Linear Strip - Segmented |
| Connection | Integral QD |
| Supply Voltage | 24 V dc |
Bannerengineering LED Indicators WLS27XGRX2S-0285DS24Q Technical Specifications
| Specification | Value |
|---|---|
| Type | WLS27 Multicolor LED Strip Light with EZ-STATUS® |
| Housing Style | Linear Strip - Segmented |
| IP Rating | IP66, IP67, IP69K |
| Power | DC |
| Primary Housing Material | FDA Copolyester |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 27 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Max Current Color (mA) | 400 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 27.0 x 351.5 |
| Environmental Rating | IP66; IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Window Material | Copolyester Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Feature: Chemical Resistant | Yes |
| Storage Temp (°C) | -40 to 70 |
| Lumens Color 1 | 200 |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 2 | 93 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Illuminated Length (LxWxH mm) | 285 |
| Number of Tower Light Segments | 2 |
