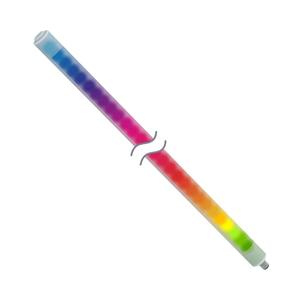

Banner WLS27PXRGBW285DSKQ Lighting and Indication
The Banner WLS27PXRGBW285DSKQ Lighting and Indication offers a Linear Strip style, No Thread mounting, 18-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLS27PXRGBW285DSKQ |
Banner WLS27PXRGBW285DSKQ Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP66, IP67, IP69K |
| Power | DC |
| Primary Housing Material | FDA Copolyester |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Communication Protocol |
| Number of Colors | Programmable |
| Product Size (mm) | 27 |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGBW |
| Animation Option 1 | IO-Link Controlled |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 550 |
| Wire Selectable Function | Programmable |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | Communication Protocol |
| Max Input Response Time (ms) | 45 |
| Physical Dimensions (LxWxH or DxH mm) | 27.0 x 351.5 |
| Environmental Rating | IP66; IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Window Material | Copolyester Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Feature: Chemical Resistant | Yes |
| Storage Temp (°C) | -40 to 70 |
| Indication Intensity | High Brightness & Daylight Visible |
| Illumination | Yes |
| Dimming Option | IO-Link Controlled |
| Illuminated Length (LxWxH mm) | 285 |
| IO Link | Yes |
