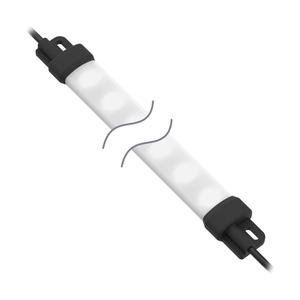

Banner WLS15CWY0500DSQP Lighting and Indication
The Banner WLS15CWY0500DSQP Lighting and Indication offers a Linear Strip style, No Thread mounting, 12/24 V dc supply voltage, and Pigtail QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLS15CWY0500DSQP |
Banner WLS15CWY0500DSQP Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP66, IP67 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 15 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Quick Disconnect Type | M12 |
| Color Option 2 | Yellow |
| Max Current Color (mA) | 720 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12/24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 500.0 x 30.6 x 15.5 |
| Environmental Rating | IP66; IP67 |
| High Temperature (up to 100° C) | 60 |
| Min Op. Temperature (°C) | -40 |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Storage Temp (°C) | -40 to 70 |
| Secondary Material | Polyamide |
| Feature: Cascade | Yes |
| Lumens Color 1 | 525 |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Lumens Color 2 | 495 |
| Color 2 - Wavelength/Color Temp/Coordinates | 580 nm |
| Illumination | Yes |
| Illuminated Length (LxWxH mm) | 426.4 |
