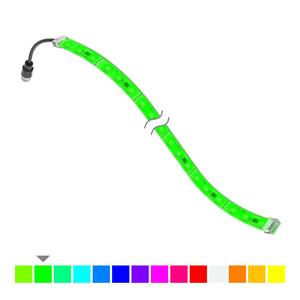

Banner WLF12PXRGB900SQP Lighting and Indication
The Banner WLF12PXRGB900SQP Lighting and Indication offers a Flexible Linear Strip style, No Thread mounting, 12 V dc supply voltage, and Pigtail QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLF12PXRGB900SQP |
Banner WLF12PXRGB900SQP Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Flexible Linear Strip |
| IP Rating | IP66, IP67, IP69K |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Silicone |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 19 |
| Product Size (mm) | 12 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | Programmable |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 600 |
| Wire Selectable Function | Programmable |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 925.0 X 12,8 X 6,4 |
| High Temperature (up to 100° C) | 45 |
| Min Op. Temperature (°C) | -20 |
| Primary Window Material | Clear Silicone |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Storage Temp (°C) | -35 to 70 |
| I/O Block Compatible | Yes |
| Secondary Material | VHB Tape |
| Dimming Option | Programmable |
| Illuminated Length (LxWxH mm) | 900 |
| IO Link | Yes |
| Pro-Editor Compatible (Discrete) | Yes |
| PFM Input | Yes |
