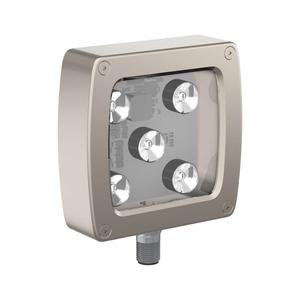

Home Brands Banner Lighting and Indication WLC90WL15Q Banner WLC90WL15Q Lighting and Indication The Banner WLC90WL15Q Lighting and Indication offers a Rectangular style, No Thread mounting, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
Brand Banner Product Type Lighting and Indication Model Number WLC90WL15Q
Banner WLC90WL15Q Lighting and Indication β Technical Specifications Specification Value Housing Style Rectangular IP Rating IP67, IP68, IP68g, IP69K Quick Disconnect Type M12 Power DC Primary Housing Material Aluminum Connection Integral QD Mounting Thread No Thread Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 1 Product Size (mm) 90 Color Technology Standard LED Color Option 1 Cool White Animation Option 1 Solid On Supply Voltage 12-30 V dc Physical Dimensions (LxWxH or DxH mm) 91.0 x 110.0 x 28.2 Environmental Rating IP67; IP68; IP68g; IP69K High Temperature (up to 100Β° C) 70 Min Op. Temperature (Β°C) -40 Storage Temp (Β°C) -40 to 70
