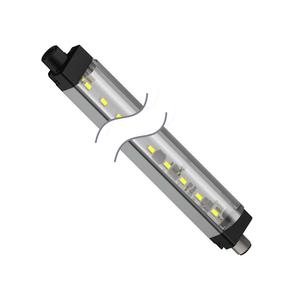

Banner WLB92ZCY550ACT Lighting and Indication
The Banner WLB92ZCY550ACT Lighting and Indication offers a Linear Strip style, No Thread mounting, 100-277 V ac supply voltage, and Conduit connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLB92ZCY550ACT |
Banner WLB92ZCY550ACT Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP40 |
| Power | AC |
| Primary Housing Material | Aluminum |
| Connection | Conduit |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 92 |
| Color Technology | Standard LED |
| Color Option 1 | Yellow |
| Animation Option 1 | Solid On |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 100-277 V ac |
| Physical Dimensions (LxWxH or DxH mm) | 651.0 x 97.0 x 104.0 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -35 |
| Primary Window Material | Polycarbonate Diffused |
| Storage Temp (°C) | -40 to 70 |
| Feature: Cascade | Yes |
| Lumens Color 1 | 620 |
| Color 1 - Wavelength/Color Temp/Coordinates | 590 nm |
| Illumination | Yes |
| Dimming Option | 0-10 V dc |
| Illuminated Length (LxWxH mm) | 542 |
