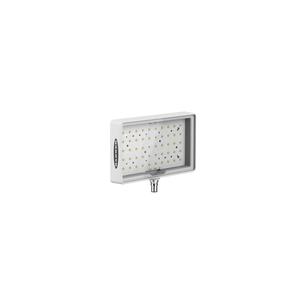

Banner WLA-2W105X180Q Lighting and Indication
The Banner WLA-2W105X180Q Lighting and Indication offers a Rectangular style, No Thread mounting, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WLA-2W105X180Q |
Banner WLA-2W105X180Q Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Rectangular |
| IP Rating | IP67, IP69K |
| Power | DC |
| Primary Housing Material | PBT |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 0.875 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 129.9 x 180.1 x 25.8 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 70 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Gray |
| Primary Window Material | Polycarbonate Clear |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Storage Temp (°C) | -40 to 70 |
| Lumens Color 1 | 1025 |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Illumination | Yes |
| Dimming Option | High-Low-Off |
| Illuminated Length (LxWxH mm) | 105 |
