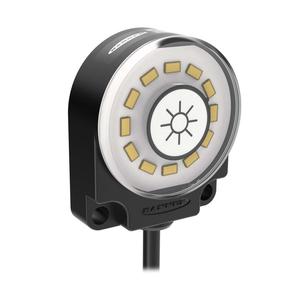

Banner WL50F-3TWQP Lighting and Indication
The Banner WL50F-3TWQP Lighting and Indication offers a Flat Mount - Flat Window style, No Thread mounting, 12-30 V dc supply voltage, and Pigtail QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | WL50F-3TWQP |
Banner WL50F-3TWQP Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Flat Mount - Flat Window |
| IP Rating | IP65, IP67, IP69K |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 250 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 60.0 x 50.0 x 23.1 |
| Environmental Rating | IP65; IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Storage Temp (Β°C) | -40 to 70 |
| Activation Function | Capacitive Touch |
| Button Operation | Latching |
| Lumens Color 1 | 300 |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Illumination | Yes |
| Dimming Option | PWM and Capacitive Touch |
| Illumination Switch Function | O=OFF; I=ON, PWM 3 Wire |
