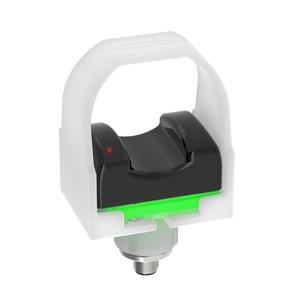

Banner VTBP6GRL Lighting and Indication
The Banner VTBP6GRL Lighting and Indication offers a Base Mount - Saddle style, Bimodal (PNP/NPN) input type, 12-30 V dc supply voltage, and Cable connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | VTBP6GRL |
Banner VTBP6GRL Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Base Mount - Saddle |
| Sensing Mode (General) | Single Point Optical |
| IP Rating | IP66 |
| NEMA / UL Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Color Option 2 | Red |
| Max Current Color (mA) | 120 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Physical Dimensions (LxWxH or DxH mm) | 59.9 x 43.2 x 48.0 |
| Environmental Rating | IP66 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -20 |
| Primary Housing Color | Red |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Number of Beams | 1 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 55Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Actuation | Yes |
| Activation Function | Optical |
| Acknowledge (Sense) Light | Green, Red |
| Output Type | PNP |
| Max Output Response Time (ms) | 100 |
| Button Operation | Momentary |
| Field Cover Color | Black |
