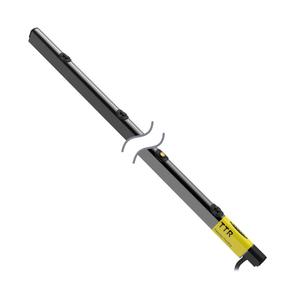

Bannerengineering TTR500BMSB5B-2.0FL-CTR Array Sensors
Technical Specifications of Banner Array Sensors TTR500BMSB5B-2.0FL-CTR:
| Sensing Mode (Detailed) | Diffuse |
| Max Sensing Range (mm) | 120 |
| Power Supply/Supply Voltage | 18-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering Array Sensors TTR500BMSB5B-2.0FL-CTR Technical Specifications
| Specification | Value |
|---|---|
| Type | TTR Roller Conveyor Sensor |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP50 |
| Cable Length (m) | 2 |
| Sensing Mode (Detailed) | Diffuse |
| Housing Style | Roller Conveyor |
| Primary Housing Material | Black Anodized Aluminum |
| Max Sensing Range (mm) | 120 |
| Slot Depth/Array Length (mm) | 558 |
| Connection | Pigtail QD |
| Quick Disconnect Type | M8 |
| Outputs | PNP |
| Slot Overall Depth (mm) | 19 |
| Number of Pins | 4 |
| Power Supply/Supply Voltage | 18-30 V dc |
| Output response time (ms) | 1 |
| Adjustments | N/A |
| Lens Material | Polycarbonate |
| Delay at Power-up (ms) | 1500 |
| Operation | Dark Operate |
| Indicator | Indicator LEDs |
| Max Op. Temperature (Β°C) | 55 |
| Min Op. Temperature (Β°C) | -10 |
| Max Op. Relative Humidity (%) | 95% @ 55Β°C |
| Feature: Quick Disconnect | Yes |
| Number of Beams | 6 |
| Beam to Beam Spacing [mm] | 93.1 |
| Distance to First Beam [mm] | 61 |
| Last Beam Distance (to End of Housing)(mm) | 25.5 |
| End Cap Type | T: T-Slot Mounting |
