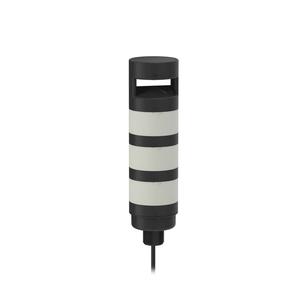

Banner TL70RYGAL Lighting and Indication
The Banner TL70RYGAL Lighting and Indication offers a Base Mount - Tower style, Bimodal (PNP/NPN) input type, 12-30 V dc supply voltage, and Cable connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | TL70RYGAL |
Banner TL70RYGAL Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Base Mount - Tower |
| IP Rating | IP65 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | Yes |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Dip-Switch Controlled |
| Color Option 2 | Yellow |
| Animation Option 2 | Dip-Switch Controlled |
| Color Option 3 | Green |
| Animation Option 3 | Dip-Switch Controlled |
| Max Current Color (mA) | 420 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 180 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 268.6 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Audible Alarm Type | Multitone Loud Audible |
| Max Audible Intensity (db at 1m) | 101 |
| Audible Operating Frequency (kHz) | 2.6 |
| Max Current - Audible Alarm (mA) | 350 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Min Audible Intensity (db at 1m) | 85 |
| Lumens Color 1 | 40 |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 2 | 22 |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 3 | 92 |
| Color 3 - Wavelength/Color Temp/Coordinates | 525 nm |
| Breadcrumb 8 | Back |
| Number of Tower Light Segments | 4 |
