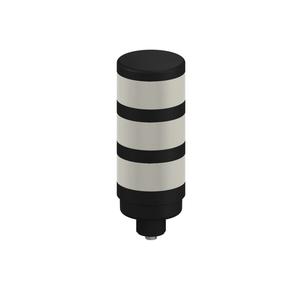

Bannerengineering TL70P3KQ Tower Light
The Banner TL70P3KQ Tower Light offers Base Mount - Tower housing style, 3 No. of Colors, M30 x 1.5 Mounting Method, and Integral QD connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the TL Series.
| Housing Style | Base Mount - Tower |
| Supply Voltage | 18-30 V dc |
| Input Type | Communication Protocol |
Banner TL70P3KQ Tower Light β Technical Specifications
| Specification | Value |
|---|---|
| Type | TL70 Pro Series 70mm Tower Lights |
| Housing Style | Base Mount - Tower |
| IP Rating | IP65 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number of Colors | 3 |
| Product Size (mm) | 70 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | IO-Link Controlled |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 420 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | Communication Protocol |
| Max Input Response Time (ms) | 20 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 211.9 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Dimming Option | Programmable |
| Modbus/TCP | Yes |
| PROFINET | Yes |
| IO Link | Yes |
| Number of Tower Light Segments | 3 |
