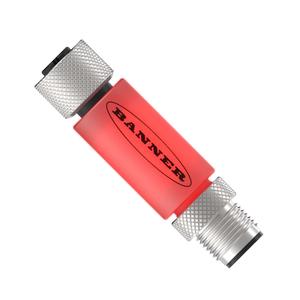

Banner TL15R1Q Lighting and Indication
The Banner TL15R1Q Lighting and Indication offers a Barrel - Straight style, Bimodal (PNP/NPN) input type, 12/24 V DC supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | TL15R1Q |
Banner TL15R1Q Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Barrel - Straight |
| IP Rating | IP66, IP67, IP68 |
| Power | DC |
| Primary Housing Material | PVC |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 15 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 80 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12/24 V DC |
| Input Type | Bimodal (PNP/NPN) |
| Physical Dimensions (LxWxH or DxH mm) | 15.0 X 58.0 |
| Environmental Rating | IP66; IP67; IP68 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Feature: Cascade | Yes |
| Lumens Color 1 | 22 |
| Color 1 - Wavelength/Color Temp/Coordinates | 590 nm |
| Number of Tower Light Segments | 1 |
