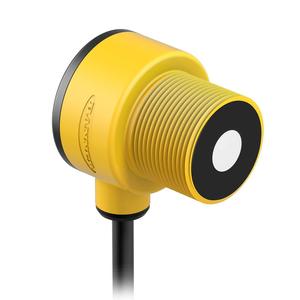

Banner T30UXIAQPMA Ultrasonic Sensor
The Banner T30UXIAQPMA Ultrasonic Sensor offers a Barrel housing style, 1000 sensing distance, 10-30 V dc power supply, and Pigtail PUR QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 1000 |
| Power Supply | 10-30 V dc |
Bannerengineering Ultrasonic Sensor T30UXIAQPMA Technical Specifications
| Specification | Value |
|---|---|
| Type | T30UX Series Temp Compensation Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Barrel |
| Device Type | Sensor |
| Primary Housing Material | PBT |
| Input Output | Analog |
| Connection | Pigtail PUR QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 1000 |
| Minimum Sensing Distance (mm) | 100 |
| Power Supply | 10-30 V dc |
| Adjustments | Teach Button |
| Number of Pins | 4 |
| Max Operating Temperature (Β°C) | 70 |
| Min Operating Temperature (Β°C) | -40 |
| Minimum Response Time (ms) | 45 |
| Barrel Thread | M30 |
| Ultrasonic Frequency (kHz) | 224 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Ultrasonic | Yes |
| Cable Length (m) | 0.15 |
| Analog Output Configuration | 4-20 mA |
