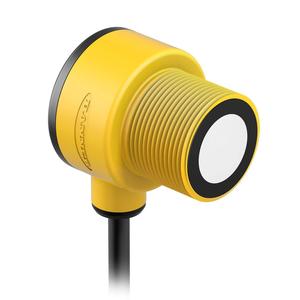

Home Brands Banner Ultrasonic Sensors T30UXDBQPMA Banner T30UXDBQPMA Ultrasonic Sensor The Banner T30UXDBQPMA Ultrasonic Sensor offers a Barrel housing style, 2000 sensing distance, 10-30 V dc power supply, and Pigtail PUR QD connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
Sensing Mode (Detailed) Time of Flight Max Sensing Distance (mm) 2000 Power Supply 10-30 V dc
Bannerengineering Ultrasonic Sensor T30UXDBQPMA Technical Specifications Specification Value Type T30UX Series Temp Compensation Ultrasonic Sensor Sensing Beam Ultrasonic Power DC NEMA / UL Type Rating NEMA 4X IP Rating IP67 Sensing Mode (General) Proximity Sensing Mode (Detailed) Time of Flight Housing Style Barrel Device Type Sensor Primary Housing Material PBT Input Output Discrete Connection Pigtail PUR QD Quick Disconnect Type M12 Max Sensing Distance (mm) 2000 Minimum Sensing Distance (mm) 200 Power Supply 10-30 V dc Adjustments Teach Button Number of Pins 4 Discrete (Switched) Outputs 1 NPN/PNP Configurable Max Operating Temperature (Β°C) 70 Min Operating Temperature (Β°C) -40 Minimum Response Time (ms) 92 Barrel Thread M30 Ultrasonic Frequency (kHz) 174 Feature: Remote Teach Yes Feature: Clear Object Detection Yes Feature: Quick Disconnect Yes Application: Ultrasonic Yes Cable Length (m) 0.15
