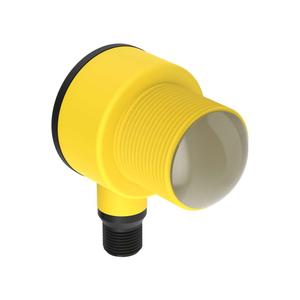

Bannerengineering T30R-1515-CKUQ Radar Sensor
Bannerengineering T30R-1515-CKUQ Radar Sensor
| Brand | Banner |
| Product Type | Radar Sensor |
| Model Number | T30R-1515-CKUQ |
Bannerengineering Radar Sensor T30R-1515-CKUQ Technical Specifications
| Specification | Value |
|---|---|
| Type | T30R Radar Sensor for Detecting the Widest Range of Objects |
| Housing Style | Barrel |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Sensing Beam | Radar |
| Power | DC |
| Primary Housing Material | PBT |
| Input Output | Analog & Discrete |
| Max Sensing Distance (mm) | 6000 |
| Connection | Integral QD |
| Number of Pins | 5 |
| Adjustments | Software; Push Button; Remote Teach |
| Quick Disconnect Type | M12 |
| Feature: Quick Disconnect | Yes |
| Device Type | Sensor |
| Power Supply | 12-30 V dc |
| Minimum Sensing Distance (mm) | 100 |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Max Operating Temperature (°C) | 65 |
| Min Operating Temperature (°C) | -40 |
| Minimum Response Time (ms) | 6 |
| Barrel Thread | M30 |
| Analog Output Configuration | 0-10 V dc |
| Operating Frequency | 122 GHz |
| Radar Beam Pattern (H x V °) | 15 x 15 |
