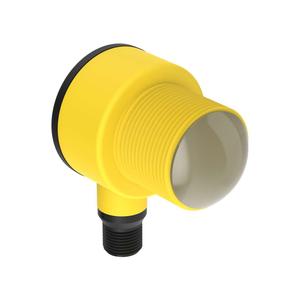

Bannerengineering T30R-1515-CKDQ Radar Sensors
Technical Specifications of Banner Radar Sensors T30R-1515-CKDQ:
| Sensing Mode (Detailed) | Time of Flight |
| Max Sensing Distance (mm) | 6000 |
| Power Supply | 10-30 V dc |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
Bannerengineering Radar Sensors T30R-1515-CKDQ Technical Specifications
| Specification | Value |
|---|---|
| Type | T30R Radar Sensor for Detecting the Widest Range of Objects |
| Housing Style | Barrel |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| IP Rating | IP67 |
| Sensing Beam | Radar |
| Power | DC |
| Primary Housing Material | PBT |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 6000 |
| Connection | Integral QD |
| Number of Pins | 5 |
| Adjustments | Software; Push Button; Remote Teach |
| Quick Disconnect Type | M12 |
| Feature: Quick Disconnect | Yes |
| Device Type | Sensor |
| Power Supply | 10-30 V dc |
| Minimum Sensing Distance (mm) | 100 |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Max Operating Temperature (Β°C) | 65 |
| Min Operating Temperature (Β°C) | -40 |
| Minimum Response Time (ms) | 6 |
| Barrel Thread | M30 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Cert: Canada | Yes |
| Cert: Thailand | Yes |
| Cert: Singapore | Yes |
| Cert: US | Yes |
| Feature: Timing (Hold/Delay) | Yes |
| PFM Output | Yes |
| IO Link | Yes |
| Operating Frequency | 122 GHz |
| Radar Beam Pattern (H x V Β°) | 15 x 15 |
| Cert: European | Yes |
| PC Configurable | Yes |
