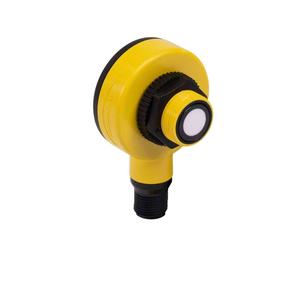

Banner T186UE W/30 Ultrasonic Sensor
The Banner T186UE W/30 Ultrasonic Sensor offers a Rectangular w/ Threaded Mount housing style, 600 sensing distance, 12-30 V dc power supply, and Flying Leads connection. Manufactured by Banner under the Banner Ultrasonic Sensor category, this model belongs to the M18/Q45 Series.
| Sensing Mode (Detailed) | Emitter |
| Max Sensing Distance (mm) | 600 |
| Power Supply | 12-30 V dc |
Bannerengineering Ultrasonic Sensor T186UE W/30 Technical Specifications
| Specification | Value |
|---|---|
| Type | T18U Series Opposed Mode Ultrasonic Sensor |
| Sensing Beam | Ultrasonic |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Rectangular w/ Threaded Mount |
| Device Type | Sensor |
| Primary Housing Material | PBT |
| Connection | Flying Leads |
| Max Sensing Distance (mm) | 600 |
| Minimum Sensing Distance (mm) | 300 |
| Power Supply | 12-30 V dc |
| Number of Pins | 2 |
| Max Operating Temperature (Β°C) | 70 |
| Min Operating Temperature (Β°C) | -40 |
| Minimum Response Time (ms) | 1 |
| Barrel Thread | M18 |
| Ultrasonic Frequency (kHz) | 230 |
| Feature: Clear Object Detection | Yes |
| Application: Ultrasonic | Yes |
| Cable Length (m) | 9 |
| Mechanical Shock (Additional Comments) | MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation). |
