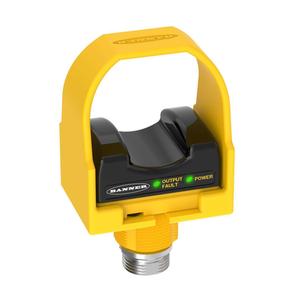

Banner STBVP6 Safety Switch
The Banner STBVP6 Safety Switch offers , type, connection type. Manufactured by Banner under the Banner Safety Switch category, this model belongs to the SI Series.
| No valid specifications available. |
Banner STBVP6 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Base Mount - Saddle |
| Sensing Mode (General) | Single Point Optical |
| IP Rating | IP66 |
| NEMA / UL Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Thermoplastic Polyetherimide |
| Connection | Cable |
| Operation | Normally Open/Normally Closed |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Product Size (mm) | Other |
| Max Current Color (mA) | 75 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 10-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 68.0 x 51.0 x 100.0 |
| Environmental Rating | IP66 |
| High Temperature (up to 100° C) | 50 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Primary Housing Color | Black |
| Number of Beams | 1 |
| Actuation | Yes |
| Activation Function | Optical |
| Output Type | Complimentary (PNP) |
| Max Output Response Time (ms) | 20 |
| Button Operation | Momentary |
| Secondary Material | Thermoplastic |
| Non-Illuminated | Yes |
| Field Cover Color | Yellow |
