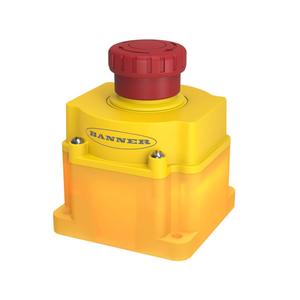

Banner SSA-EB1PLYR-12ED1Q8 Lighting and Indication
The Banner SSA-EB1PLYR-12ED1Q8 Lighting and Indication offers a Flush-Mount Emergency Stop Button type, Flat mounting, 40 mm button diameter, and M12 connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | SSA-EB1PLYR-12ED1Q8 |
Banner SSA-EB1PLYR-12ED1Q8 Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| Type | Flush-Mount Emergency Stop Button |
| IP Rating | IP65 |
| Quick Disconnect Type | M12 |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Device Type | Push Button |
| Actuation | Twist/Pull-to-Release |
| Mounting Thread | Flat |
| Connection Type | M12 |
| Armed Color (Solid) | Yellow |
| Actuated Color | Red - Flash |
| Illumination Type | Base |
| Contact Quantity | 2 NC, 2 NO |
| Contact Rating | 2 A @ 24 V dc |
| Stop Signal Color ( Solid) | Red |
| Button Diameter (mm) | 40 |
| Physical Dimensions (LxWxH or DxH mm) | 103 x 110 x 81 |
| High Temperature (up to 100Β° C) | 55 |
| Min Op. Temperature (Β°C) | -25 |
