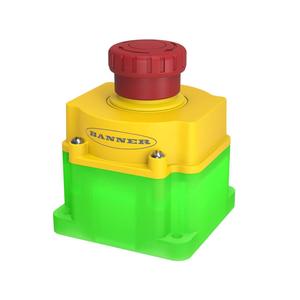

Banner SSA-EB1PLGR-02ED1Q5A Lighting and Indication
The Banner SSA-EB1PLGR-02ED1Q5A Lighting and Indication offers a Flush-Mount Emergency Stop Button type, Flat mounting, 40 mm button diameter, and M12 connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | SSA-EB1PLGR-02ED1Q5A |
Banner SSA-EB1PLGR-02ED1Q5A Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | Flush-Mount Emergency Stop Button |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Feature: Quick Disconnect | Yes |
| Device Type | Push Button |
| Actuation | Twist/Pull-to-Release |
| Connection Type | M12 |
| Armed Color (Solid) | Green |
| Button Shroud | No |
| Actuated Color | Red - Flash |
| Illumination Type | Base |
| In-Series Diagnostics | No |
| Feature: Illuminated | Yes |
| Actuator/Button Material | Thermoplastic |
| Contact Quantity | 2 NC |
| Mounting Thread/Style | Flat |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 103 x 110 x 81 |
| Min Operating Temperature ( °C) | -25 |
| Stop Signal Color ( Solid) | Red |
| Button Diameter (mm) | 40 |
| Max Operating Temperature ( °C) | 55 |
