Banner SSA-EB1PL1-02 Lighting and Indication

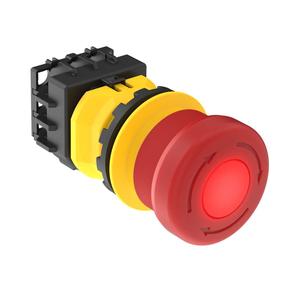

The Banner SSA-EB1PL1-02 Lighting and Indication offers a Panel Mount Emergency Stop Button type, Panel mounting, 40 mm button diameter, and Screw Terminal connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | SSA-EB1PL1-02 |
Banner SSA-EB1PL1-02 Lighting and Indication β Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | Panel Mount Emergency Stop Button |
| Primary Housing Material | Polycarbonate |
| Device Type | Push Button |
| Actuation | Twist/Pull-to-Release |
| Connection Type | Screw Terminal |
| Armed Color (Solid) | OFF or Red |
| Button Shroud | No |
| Actuated Color | Red or OFF |
| Illumination Type | Button |
| Feature: Illuminated | Yes |
| Actuator/Button Material | Thermoplastic |
| Contact Quantity | 2 NC |
| Mounting Thread/Style | Panel |
| Contact Rating | 2 A @ 30 V dc |
| Dimensions (HxWxD mm ) | 81 x 37 x 40 |
| Min Operating Temperature ( Β°C) | -25 |
| Button Diameter (mm) | 40 |
| Max Operating Temperature ( Β°C) | 55 |
