During technical comparisons, BANNERENGINEERING-SP350GYRPQ appears alongside Banner Photoelectric Sensor, Banner Bannerengineering S18Lgxxpq and Banner Safety Light Curtain Type 4 S4B so engineers assess signal types, ingress protection, and ambient tolerances accurately.

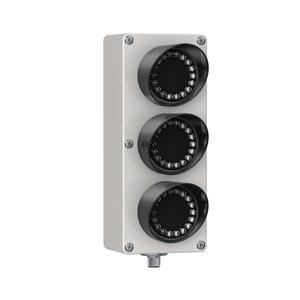

Bannerengineering SP350GYRPQ LED Indicators
Technical Specifications of Banner LED Indicators SP350GYRPQ:
| Housing Style | Flat Mount - Signal Light |
| Connection | Integral QD |
| Supply Voltage | 15-30 V dc |
| Input Type | PNP |
Bannerengineering LED Indicators SP350GYRPQ Technical Specifications
| Specification | Value |
|---|---|
| Type | Signal Lights: SP Series |
| Housing Style | Flat Mount - Signal Light |
| IP Rating | IP65 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Yellow |
| Color Option 3 | Red |
| Max Current Color (mA) | 120 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 15-30 V dc |
| Input Type | PNP |
| Max Input Response Time (ms) | 10 |
| Physical Dimensions (LxWxH or DxH mm) | 210.0 x 80.0 x 105.2 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Lumens Color 1 | 57 |
| Color 1 - Wavelength/Color Temp/Coordinates | 528 nm |
| Lumens Color 2 | 14 |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 3 | 20 |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Application: Traffic Light | Yes |
