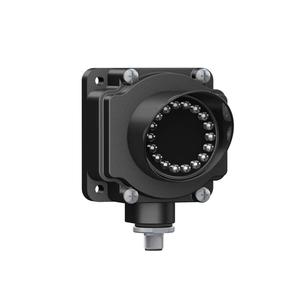

Bannerengineering SP150GPQ LED Indicators
Technical Specifications of Banner LED Indicators SP150GPQ:
| Housing Style | Flat Mount - Signal Light |
| Connection | Integral QD |
| Supply Voltage | 15-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
Bannerengineering LED Indicators SP150GPQ Technical Specifications
| Specification | Value |
|---|---|
| Type | Signal Lights: SP Series |
| Housing Style | Flat Mount - Signal Light |
| IP Rating | IP67 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 120 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 15-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 10 |
| Physical Dimensions (LxWxH or DxH mm) | 109.5 x 80.9 x 91.6 |
| Environmental Rating | IP67 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Lumens Color 1 | 57 |
| Color 1 - Wavelength/Color Temp/Coordinates | 528 nm |
| Application: Traffic Light | Yes |
