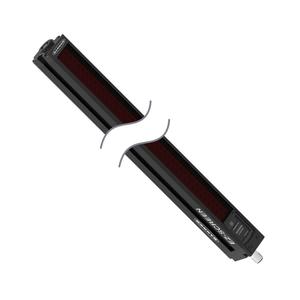

Home Brands Banner SLSR SLSE30-900Q5 Banner SLSE30-900Q5 Safety Light Curtain The Banner SLSE30-900Q5 Safety Light Curtain offers a Type 4 safety level, 0.1 - 18 m operating distance, 900 mm , 100 mA max. supply current, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLSE30-900Q5
Banner SLSE30-900Q5 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Defined Area Height Range (mm) >650 - <=950 Max Operating Range (m) >8 - <=20 Low Profile No Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 900 Dimensions WxD (mm) 36 x 45.2 Overall Length (mm) 971 External Monitoring Device No Housing Finish Black Polyester Number of Pins (Receiver/Emitter) 5 Operating Distance (m) 0.1 - 18 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 25-152 / 81-495 Resolution (mm) 30 Reduced Resolution No Response Time 19 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Emitter Vibration 10-55 Hz at 0.35 mm Auxiliary Output No Fault Output No Housing Material Aluminum; Zinc; Acrylic Supply Current 100 mA max. Test Input Yes
