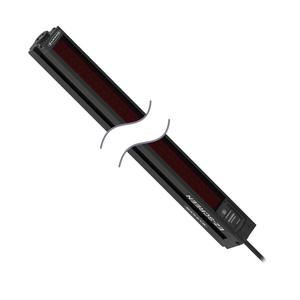

Home Brands Banner SLSR SLSE14-300P8 Banner SLSE14-300P8 Safety Light Curtain The Banner SLSE14-300P8 Safety Light Curtain offers a Type 4 safety level, 0.1 - 6 m operating distance, 300 mm , 275 mA max. supply current, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLSE14-300P8
Banner SLSE14-300P8 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Pigtail (Yellow) Defined Area Height Range (mm) <=350 Max Operating Range (m) >4 - <=8 Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 300 Dimensions WxD (mm) 36 x 45.2 Overall Length (mm) 372 External Monitoring Device 1 or 2 Channel Housing Finish Black Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.1 - 6 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 33-220 / 109-800 Resolution (mm) 14 Reduced Resolution Yes Response Time 11 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Emitter Vibration 10-55 Hz at 0.35 mm Auxiliary Output Yes Fault Output Yes Housing Material Aluminum; PBT; Acrylic OSSD Rating 24 V dc at 0.5 A each Supply Current 275 mA max. Trip/Latch Output Selectable Test Input Yes
