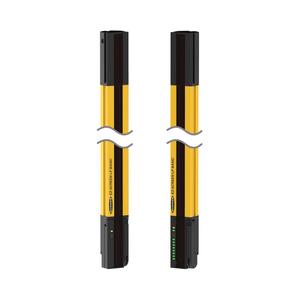

Banner SLPVAP25-550 Safety Light Curtain
The Banner SLPVAP25-550 Safety Light Curtain offers a Type 4 safety level, <=4 m operating range, 550 mm height, and Removable Disconnect connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
| Brand | Banner |
| Product Type | Safety Light Curtain |
| Model Number | SLPVAP25-550 |
Banner SLPVAP25-550 Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| Type | LP Basic Series: Compact Type 4 Safety Light Curtains |
| IP Rating | IP54 |
| Primary Housing Material | Aluminum |
| Connector Type | Removable Disconnect |
| Defined Area Height Range (mm) | >350 - <=650 |
| Max Operating Range (m) | <=4 |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Defined Area Height (mm) | 550 |
| Dimensions WxD (mm) | 28 x 26 |
| Overall Length (mm) | 550 |
| External Monitoring Device | No |
| Housing Finish | Yellow Polyester |
| Operating Distance (m) | 0.1 - 4 |
| Operating Voltage | 24 V dc +/- 15% |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Recovery Time | 25-152 / 81-495 |
| Resolution (mm) | 25 |
| Reduced Resolution | No |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| System Type | Emitter/Receiver Pair |
| Vibration | 10-55 Hz at 0.35 mm |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 210 mA max. |
