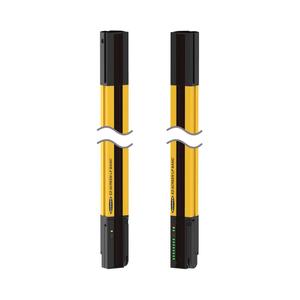

Home Brands Banner Safety Light Curtain SLPVAP14-550 Banner SLPVAP14-550 Safety Light Curtain The Banner SLPVAP14-550 Safety Light Curtain offers a Type 4 safety level, <=4 m operating range, 550 mm height, and Removable Disconnect connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
Brand Banner Product Type Safety Light Curtain Model Number SLPVAP14-550
Banner SLPVAP14-550 Safety Light Curtain β Technical Specifications Specification Value Type LP Basic Series: Compact Type 4 Safety Light Curtains IP Rating IP54 Primary Housing Material Aluminum Connector Type Removable Disconnect Defined Area Height Range (mm) >350 - <=650 Max Operating Range (m) <=4 Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 550 Dimensions WxD (mm) 28 x 26 Overall Length (mm) 550 External Monitoring Device No Housing Finish Yellow Polyester Operating Distance (m) 0.1 - 4 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 33-220 / 109-800 Resolution (mm) 14 Reduced Resolution No SIL Rating SIL3; CL3 Electrical Safety Class III Shock 10g at 16ms (6000 cycles) System Type Emitter/Receiver Pair Vibration 10-55 Hz at 0.35 mm Housing Material Aluminum; Zinc; Acrylic OSSD Rating 24 V dc at 0.5 A each Supply Current 210 mA max.
