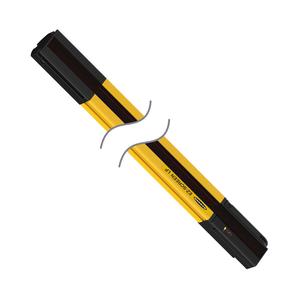

Home Brands Banner SLSR SLPR14-830P8 Banner SLPR14-830P8 Safety Light Curtain The Banner SLPR14-830P8 Safety Light Curtain offers a Type 4 safety level, 0.1 - 7 m operating distance, 830 mm , 150 mA max. supply current, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLPR14-830P8
Banner SLPR14-830P8 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Pigtail (Yellow) Defined Area Height Range (mm) >650 - <=950 Max Operating Range (m) >4 - <=8 Low Profile Yes Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 830 Dimensions WxD (mm) 28 x 26 Overall Length (mm) 830 External Monitoring Device 1 or 2 Channel Fixed Blanking Yes Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.1 - 7 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 33-220 / 109-800 Resolution (mm) 14 Reduced Resolution Yes Response Time 22.5 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Receiver Vibration 10-55 Hz at 0.35 mm Auxiliary Output Yes Fault Output Yes Housing Material Aluminum; Zinc; Acrylic OSSD Rating 24 V dc at 0.5 A each Supply Current 150 mA max. Trip/Latch Output Selectable Test Input No Feature: End-to-End Sensing Yes
