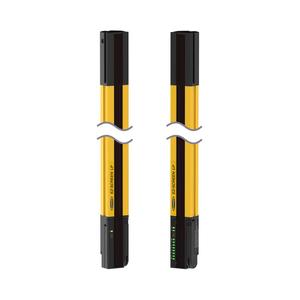

Banner SLPP25-550P88 Safety Light Curtain
The Banner SLPP25-550P88 Safety Light Curtain offers a Type 4 safety level, >4 - <=8 m operating range, 550 mm height, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
| Max Operating Range (m) | >4 - <=8 |
| Safety Level | Type 4 |
| Resolution (mm) | 25 |
Banner SLPP25-550P88 Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Type | LP Series Full Feature Compact Type 4 |
| IP Rating | IP65 |
| Primary Housing Material | Aluminum |
| Connector Type | M12 Pigtail (Yellow) |
| Defined Area Height Range (mm) | >350 - <=650 |
| Max Operating Range (m) | >4 - <=8 |
| Low Profile | Yes |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Defined Area Height (mm) | 550 |
| Dimensions WxD (mm) | 28 x 26 |
| Overall Length (mm) | 550 |
| External Monitoring Device | 1 or 2 Channel |
| Fixed Blanking | Yes |
| Housing Finish | Yellow Polyester |
| Number of Pins (Receiver/Emitter) | 8 |
| Operating Distance (m) | 0.1 - 7 |
| Operating Voltage | 24 V dc +/- 15% |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Recovery Time | 33-220 / 109-800 |
| Resolution (mm) | 25 |
| Reduced Resolution | Yes |
| Response Time | 16.5 |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| System Type | Emitter/Receiver Pair |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | Yes |
| Fault Output | Yes |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 210 mA max. |
| Trip/Latch Output | Selectable |
| Test Input | Yes |
| Feature: End-to-End Sensing | Yes |
