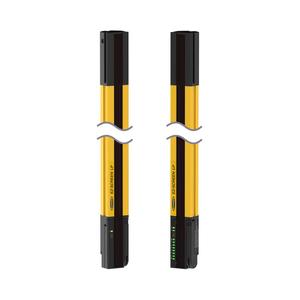

Banner SLPP25-410P88 Safety Light Curtain

The Banner SLPP25-410P88 safety grid system provides 25 mm hand detection with 410 mm protective height for machine safety. This emitter and receiver pair operates on 24 V DC, uses 21 beams, supports 0.1–7 m operating range, delivers 9.5 ms response time, features IP65 protection, and is manufactured by Banner. It belongs to the Banner Safety Light Curtain category within the LP series for industrial automation use.

Banner SLPP25-410P88
Datasheet
BrandBanner
Product TypeSafety Light Curtain
Model NumberSLPP25-410P88

Banner SLPP25-410P88 Safety Light Curtain – Technical Specifications

SpecificationValue
TypeLP Series Full Feature Compact Type 4
IP RatingIP65
Primary Housing MaterialAluminum
Connector TypeM12 Pigtail (Yellow)
Defined Area Height Range (mm)>350 - <=650
Max Operating Range (m)>4 - <=8
Safety LevelType 4
Effective Aperture AngleType 4 Per IEC 61496-2
Defined Area Height (mm)410
Dimensions WxD (mm)28 x 26
Overall Length (mm)410
External Monitoring Device1 or 2 Channel
Housing FinishYellow Polyester
Number of Pins (Receiver/Emitter)8
Operating Distance (m)0.1 - 7
Operating Voltage24 V dc +/- 15%
Operating Temperature0 to +55 deg. C; RH 95%
PL RatingPle
Recovery Time33-220 / 109-800
Resolution (mm)25
Reduced ResolutionYes
Response Time13.5
SIL RatingSIL3; CL3
Electrical Safety ClassIII
Shock10g at 16ms (6000 cycles)
System TypeEmitter/Receiver Pair
Vibration10-55 Hz at 0.35 mm
Housing MaterialAluminum; Zinc; Acrylic
OSSD Rating24 V dc at 0.5 A each
Supply Current210 mA max.
