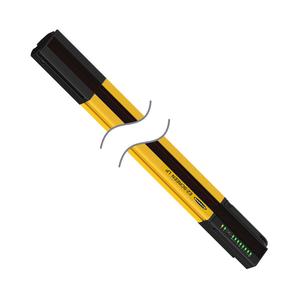

Home Brands Banner SLSR SLPMR14-550P12 Banner SLPMR14-550P12 Safety Light Curtain The Banner SLPMR14-550P12 Safety Light Curtain offers a Type 4 safety level, 0.1 - 7 m operating distance, 550 mm , 150 mA max. supply current, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLPMR14-550P12
Banner SLPMR14-550P12 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Pigtail (Yellow) Defined Area Height Range (mm) >350 - <=650 Max Operating Range (m) >4 - <=8 Low Profile Yes Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 550 Dimensions WxD (mm) 28 x 26 Overall Length (mm) 550 External Monitoring Device 1 or 2 Channel Fixed Blanking Yes Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 12 Operating Distance (m) 0.1 - 7 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 33-220 / 109-800 Resolution (mm) 14 Reduced Resolution Yes Response Time 16.5 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Receiver Vibration 10-55 Hz at 0.35 mm Auxiliary Output Yes Fault Output Yes Housing Material Aluminum; Zinc; Acrylic OSSD Rating 24 V dc at 0.5 A each Supply Current 150 mA max. Trip/Latch Output Selectable Test Input No Feature: Integral Muting Yes Feature: End-to-End Sensing Yes
