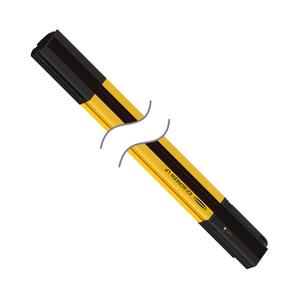

Home Brands Banner SLSR SLPE25-970 Banner SLPE25-970 Safety Light Curtain The Banner SLPE25-970 Safety Light Curtain offers a Type 4 safety level, 0.1 - 7 m operating distance, 970 mm , 150 mA max. supply current, and Removable Disconnect connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLPE25-970
Banner SLPE25-970 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type Removable Disconnect Defined Area Height Range (mm) >950 - <=1300 Max Operating Range (m) >4 - <=8 Low Profile Yes Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 970 Dimensions WxD (mm) 28 x 26 Overall Length (mm) 970 External Monitoring Device No Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.1 - 7 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 25-152 / 81-495 Resolution (mm) 25 Reduced Resolution Yes Response Time 15.5 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Emitter Vibration 10-55 Hz at 0.35 mm Auxiliary Output Yes Fault Output Yes Housing Material Aluminum; Zinc; Acrylic OSSD Rating 24 V dc at 0.5 A each Supply Current 150 mA max. Trip/Latch Output Selectable Test Input No Feature: End-to-End Sensing Yes
