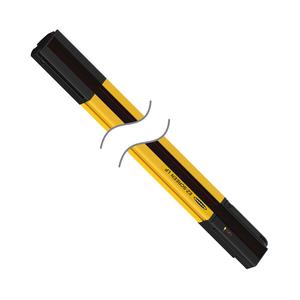

Home Brands Banner SLSR SLPE25-690P8 Banner SLPE25-690P8 Safety Light Curtain The Banner SLPE25-690P8 Safety Light Curtain offers a Type 4 safety level, 0.1 - 7 m operating distance, 690 mm , 60 mA max. supply current, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLPE25-690P8
Banner SLPE25-690P8 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Pigtail (Yellow) Defined Area Height Range (mm) >650 - <=950 Max Operating Range (m) >4 - <=8 Low Profile Yes Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 690 Dimensions WxD (mm) 28 x 26 Overall Length (mm) 690 External Monitoring Device No Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.1 - 7 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 25-152 / 81-495 Resolution (mm) 25 Reduced Resolution No Response Time 12.5 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Emitter Vibration 10-55 Hz at 0.35 mm Auxiliary Output No Fault Output Yes Housing Material Aluminum; Zinc; Acrylic Supply Current 60 mA max. Test Input Yes Feature: End-to-End Sensing Yes
