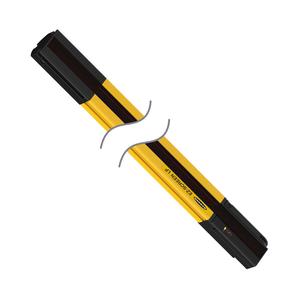

Home Brands Banner SLSR SLPE14-970P8 Banner SLPE14-970P8 Safety Light Curtain The Banner SLPE14-970P8 Safety Light Curtain offers a Type 4 safety level, 0.1 - 7 m operating distance, 970 mm , 60 mA max. supply current, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
Brand Banner Product Type Safety Light Curtain Model Number SLPE14-970P8
Banner SLPE14-970P8 Safety Light Curtain β Technical Specifications Specification Value IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Pigtail (Yellow) Defined Area Height Range (mm) >950 - <=1300 Max Operating Range (m) >4 - <=8 Low Profile Yes Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Defined Area Height (mm) 970 Dimensions WxD (mm) 28 x 26 Overall Length (mm) 970 External Monitoring Device No Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.1 - 7 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 33-220 / 109-800 Resolution (mm) 14 Reduced Resolution Yes Response Time 25.5 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Emitter Vibration 10-55 Hz at 0.35 mm Auxiliary Output No Fault Output Yes Housing Material Aluminum; Zinc; Acrylic Supply Current 60 mA max. Test Input Yes Feature: End-to-End Sensing Yes
