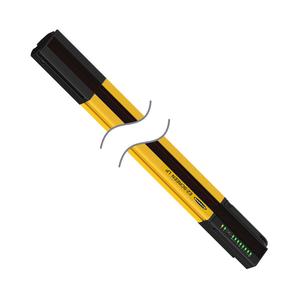

Banner SLPCR25-550P8 Safety Light Curtain
The Banner SLPCR25-550P8 Safety Light Curtain offers a Type 4 safety level, 0.1 - 7 m operating distance, 550 mm, 150 mA max. supply current, and M12 Pigtail (Yellow) connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the LS Basic Series.
| Brand | Banner |
| Product Type | Safety Light Curtain |
| Model Number | SLPCR25-550P8 |
Banner SLPCR25-550P8 Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP65 |
| Primary Housing Material | Aluminum |
| Connector Type | M12 Pigtail (Yellow) |
| Defined Area Height Range (mm) | >350 - <=650 |
| Max Operating Range (m) | >4 - <=8 |
| Low Profile | Yes |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Defined Area Height (mm) | 550 |
| Dimensions WxD (mm) | 28 x 26 |
| Overall Length (mm) | 550 |
| External Monitoring Device | 1 or 2 Channel |
| Fixed Blanking | Yes |
| Housing Finish | Yellow Polyester |
| Number of Pins (Receiver/Emitter) | 8 |
| Operating Distance (m) | 0.1 - 7 |
| Operating Voltage | 24 V dc +/- 15% |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Recovery Time | 25-152 / 81-495 |
| Resolution (mm) | 25 |
| Reduced Resolution | Yes |
| Response Time | 11 |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| System Type | Receiver |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | Yes |
| Fault Output | Yes |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 150 mA max. |
| Trip/Latch Output | Selectable |
| Test Input | No |
| Feature: Cascade | Yes |
| Feature: End-to-End Sensing | Yes |
